DE1 Setup

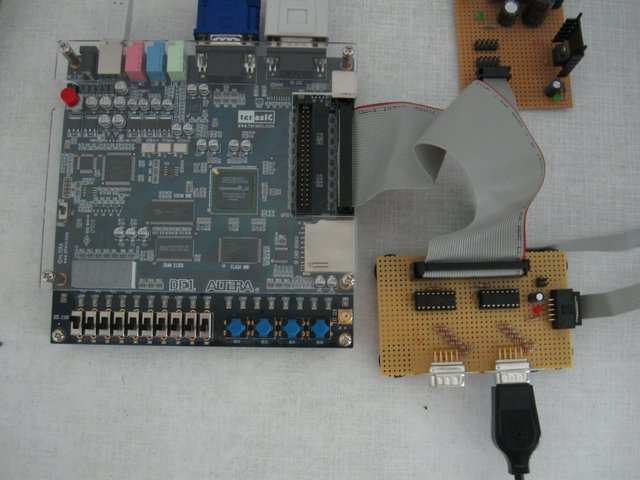

Prototype setup on an Altera DE1 board with joystick input.
FPGA / Altera DE1
Goldmomo Mini
A self-written FPGA-based game system experiment: CPU, GPU, memory map, IO and an emulator for debugging software.
Archived project, kept for historical interest.
FPGA note: This was one of my first steps with FPGAs. Looking back, large parts of the code could be written much simpler, cleaner and more optimal today. It remains here as a learning project and archive.
Hardware Notes
System Overview

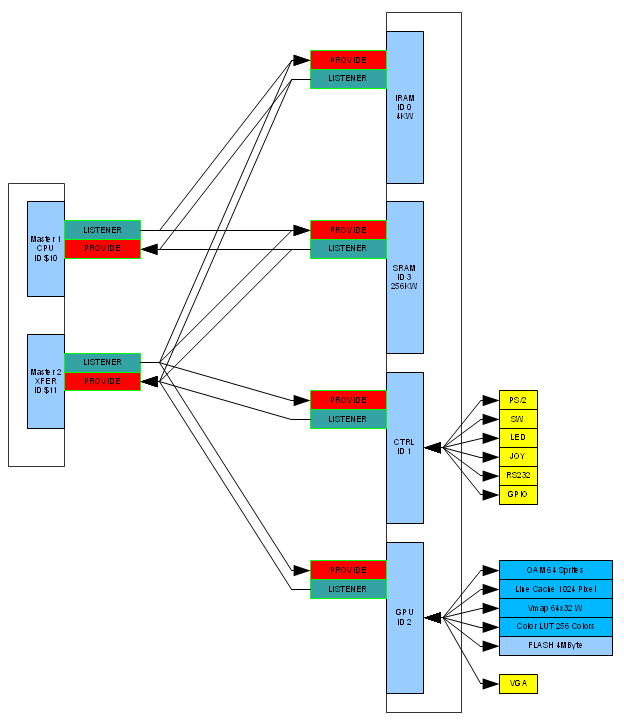

Component Overview
CPU, GPU, memory and IO blocks in the original design.

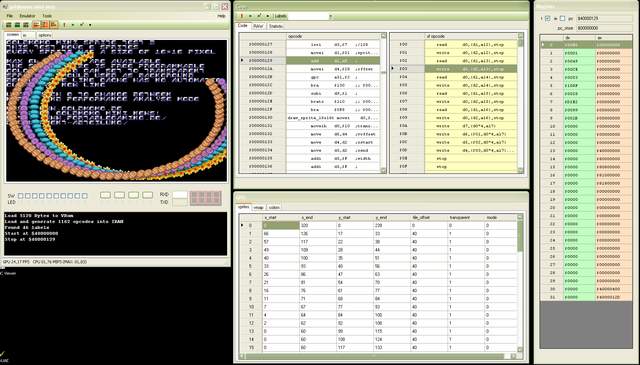

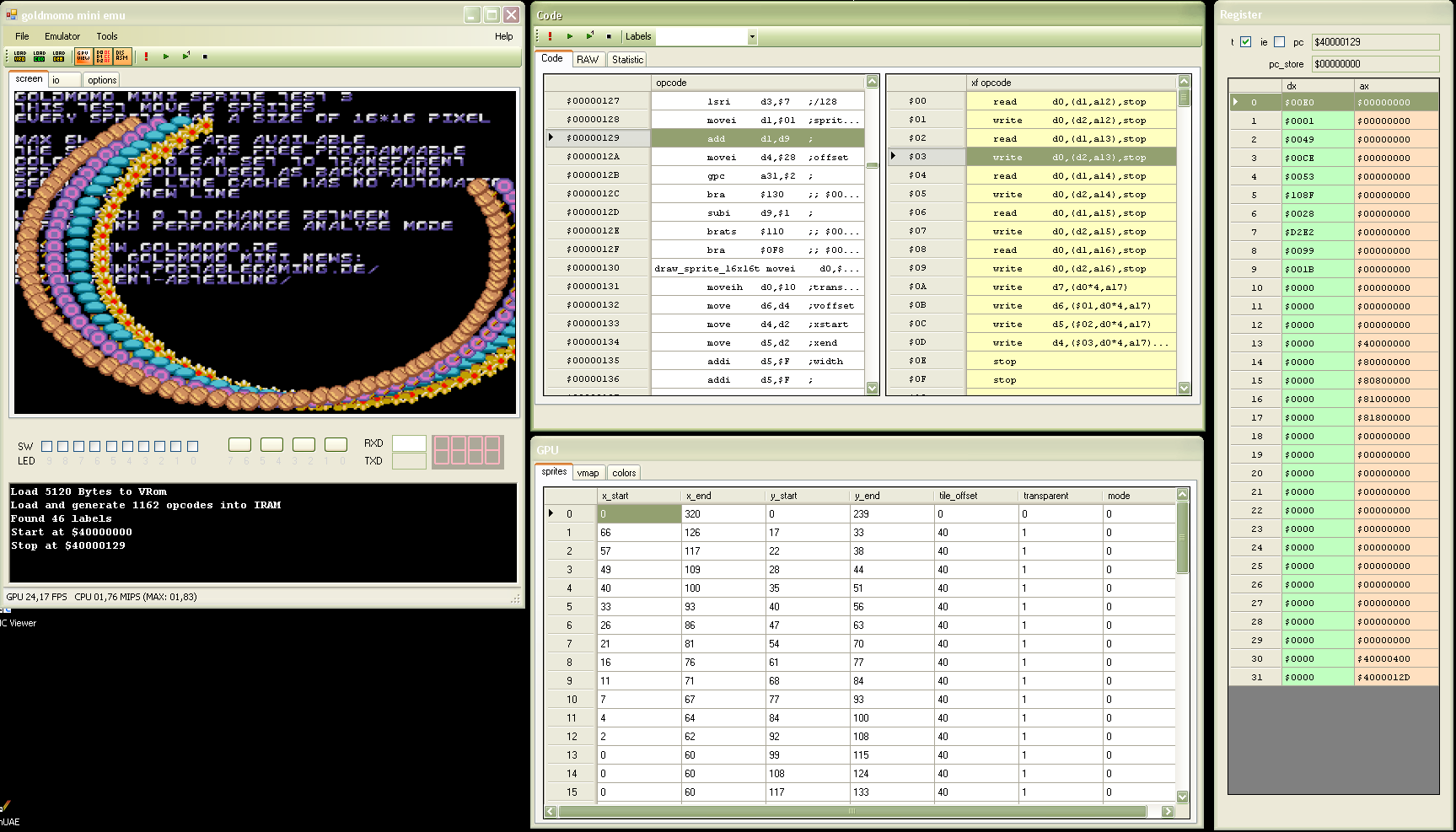

Emulator
Emulator used to program, debug and test Goldmomo Mini software.
CPU
- Separate calculation and transfer units
- Separate code and data buses
- 16-bit CPU opcodes and 32-bit transfer opcodes
- Event and IRQ handling
- 32 data registers and 32 address registers
GPU / IO
- Tile based pixel pipeline
- 320 x 240 at 60 Hz
- Up to 64 programmable sprites
- PS/2, LEDs, keys, RS-232 and joystick ports
- Internal RAM and SRAM access
